Marker Foundations
Product number guide
An understanding of our Marker Foundation Numbering System will improve the accuracy of your orders. Product Numbers include the Marker Type, Marker Dimensions, Number of Vases and the Size of the Vase Hole.
Example: B2412V1-4
| B | Marker Type: B - Bronze G - Granite |
| 2412 | Marker Dimensions 24” x 12” (Not Foundation Dimensions) |
| V1 | Number of Vase Holes |
| - 4 | Size of Vase Holes: (NV = No Vase / SV = Side Vase) |

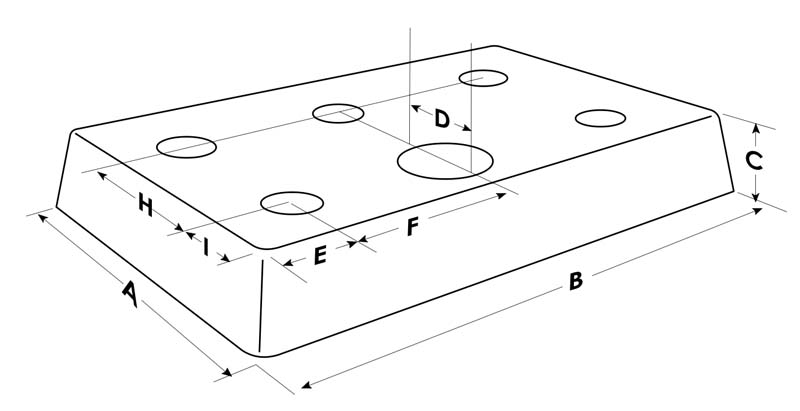

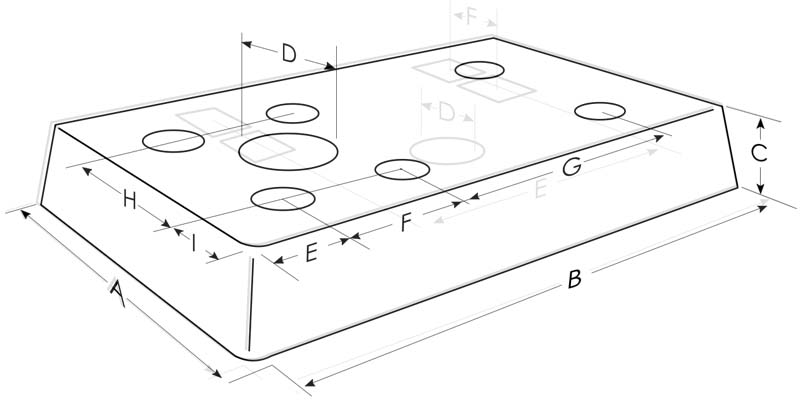

Bronze Markers

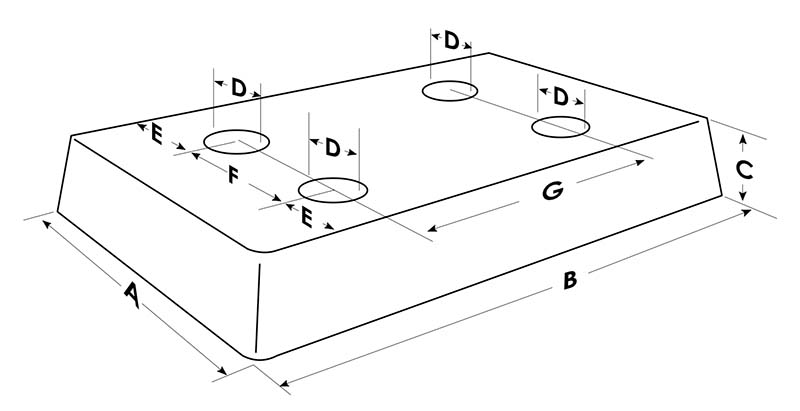

| Order # | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| B2211NV | 12 ½" | 24 ½" | 2 ½" | 3" | 3" | 6 ½" | 18" |
| B2413NV | 16 ½" | 28 ½" | 2 ½" | 3" | 1 ¼" | 8" | 17 ½" |
| B2414NV | 20" | 31 ½" | 3" | 2" | 6" | 7" | 17 ½" |
| Order # | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| B3613V1-6 | 18" | 41" | 3" | 6" | 7 ½" | 13" | 5" | 5" |
* CHECK THE SPECS ON THIS ONE. ITS THE SAME AS THE FIRST ONE.
| Order # | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| B2211NV | 12 ½" | 24 ½" | 2 ½" | 3" | 3" | 6 ½" | 18" |
| B2413NV | 16 ½" | 28 ½" | 2 ½" | 3" | 1 ¼" | 8" | 17 ½" |
| B2414NV | 20" | 31 ½" | 3" | 2" | 6" | 7" | 17 ½" |

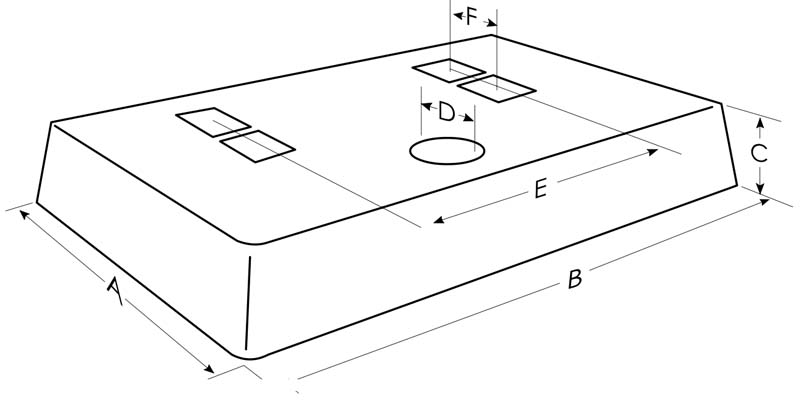

| Order # | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| B2412V1-5SL | 26" | 32" | 3" | 5" | 17 ½" | 7" |
| Order # | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| B2416V1-6 | 21" | 29" | 3" | 6" | 5 ½" | 6" | 12" | 7" | 3 ½" |

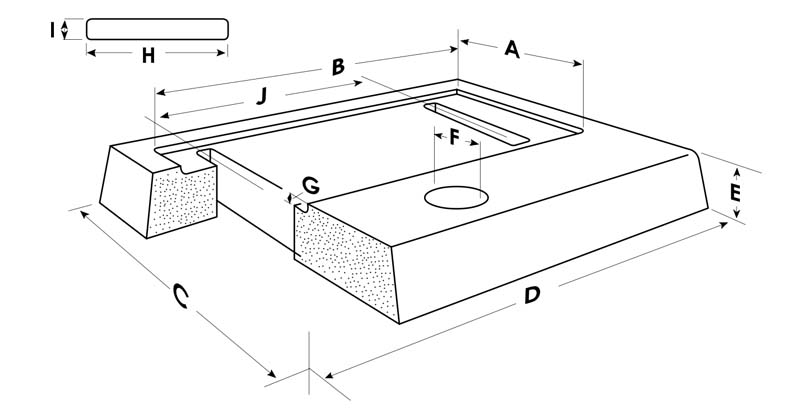

| Order # | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| B2412V2-3.75 | 13 ½" | 25 ½" | 26" | 31" | 3" | 3 ¾" | ¾" | 10" | 2" | 17 ½" |
| B2412V2-4 | 13 ½" | 25 ½" | 24" | 31" | 3" | 4" | ¾" | 10" | 2" | 17 ½" |
| B2816V2-4 | 17" | 29" | 28 ½" | 36" | 3" | 4" | ¾" | 11 ¾" | 2" | 17 ½" |

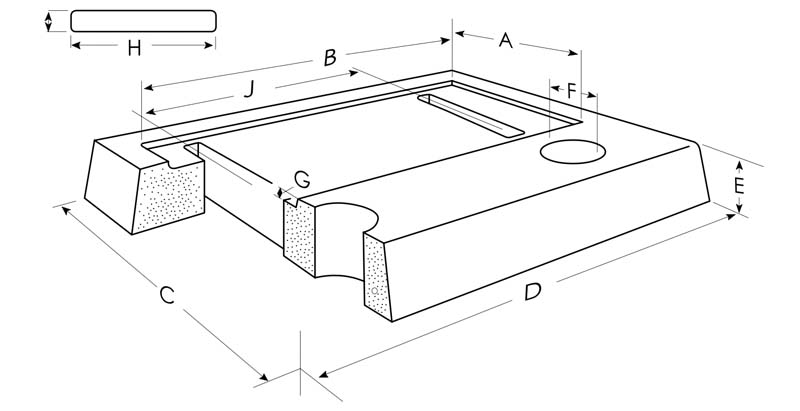

| Order # | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| B2412V1-4 | 13 ½" | 25 ½" | 24" | 31" | 3" | 4" | ¾" | 10" | 2" | 17 ½" |
| B2412V1-4 | 13 ½" | 25 ½" | 24" | 31" | 3" | 5" | ¾" | 10" | 2" | 17 ½" |
| B2816V1-4 | 17" | 29" | 28 ½" | 36" | 3" | 4" | ¾" | 10" | 2" | 18 ½" |

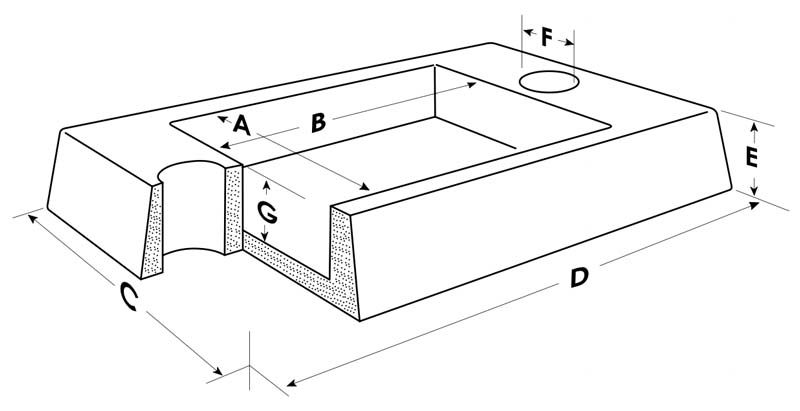

Granite Markers

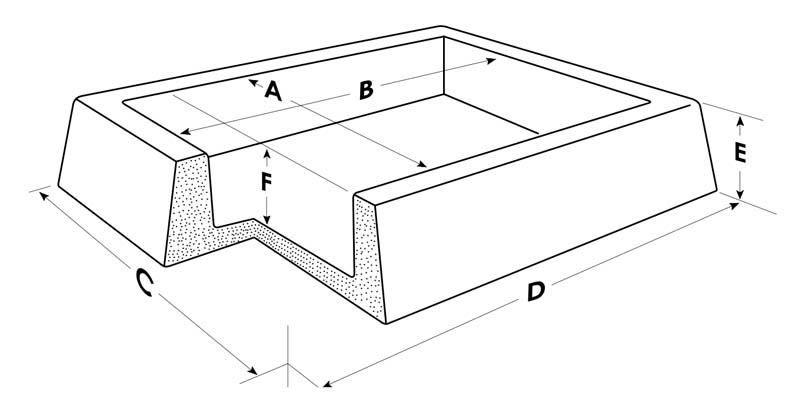

| Order # | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| G1814V2-3.75 | 15" | 19" | 28" | 28" | 4" | 3 ¾" | 3" |
| G2412V2-4 | 13 ¾" | 26" | 24 ¼" | 31 ½" | 5" | 4" | 3 ¾" |
| G2412V2-3.75 | 13 ¾" | 26" | 24 ¼" | 31 ½" | 5" | 3 ¾" | 3 ¾" |
| G2412V2-3.75 (Deep) | 14 ¼" | 26 ⅜" | 24 ⅜" | 31 ½" | 5 ¾" | 3 ¾" | 4 ¾" |

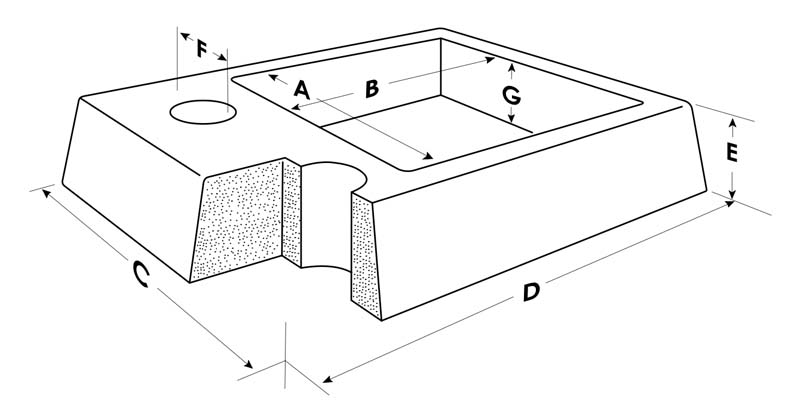

| Order # | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| G1814SV2-3.75 | 15" | 19" | 24" | 28" | 5" | 3 ¾" | 3" |

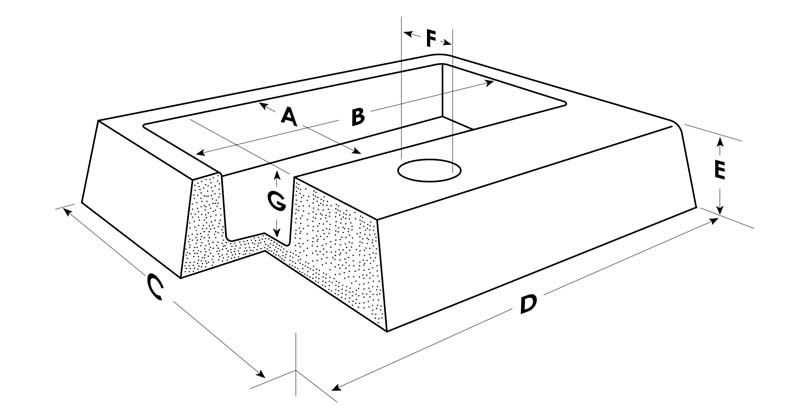

| Order # | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| G1814SV2-3.75 | 15" | 19" | 24" | 28" | 5" | 3 ¾" | 3" |
| Order # | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| G2412SV-4 | 13" | 25" | 18" | 36" | 5" | 4" |

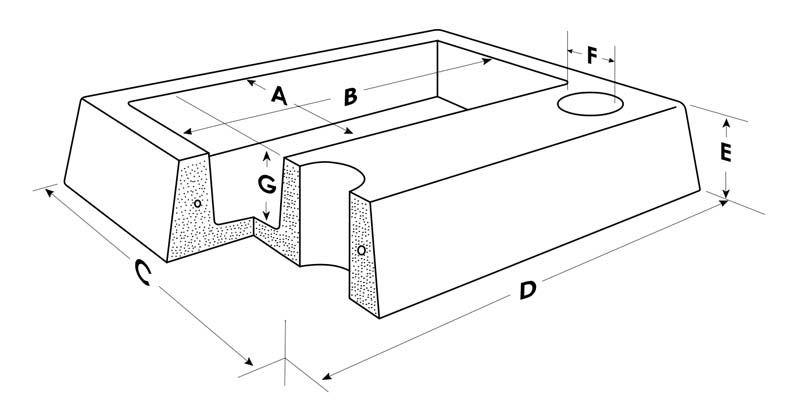

| Order # | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| G1810V1-4 | 10 ⅛" | 18 ⅛" | 19 ½" | 23 ½" | 5" | 4" | 4" |
| G2412V1-5 | 13" | 25" | 24 ¾" | 32" | 5" | 5" | 3 ¾" |
| G2412V1-4 | 13" | 25" | 24 ¾" | 32" | 5" | 4" | 3 ¾" |
