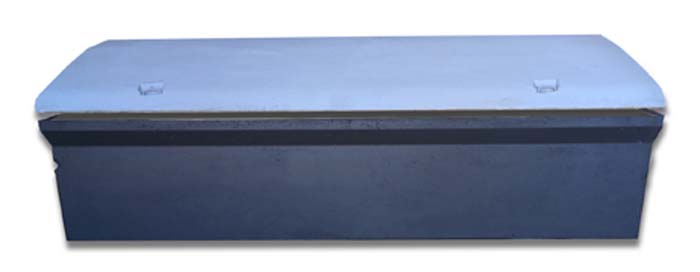

Christy Vault

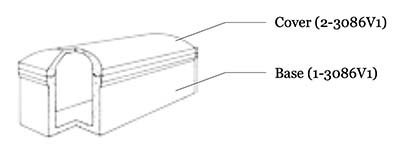

Black base with bottom
Gray domed cover

Order #	Inner Dimensions			Outer Dimensions			Weights (Lbs)
Order #	Width	Length	Height	Width	Length	Height	Base	Cover	Total
V3290-1 (Oversize)	32"	90"	24"	36"	94"	31"	1063	581	1644
V3086-1 (Standard)	30"	86"	23"	34"	90"	29"	875	413	1288
V2464-1	24"	64"	18"	28"	68"	25½"	489	247	736
V1848-1	18"	48"	16"	22"	52"	22½"	300	200	500
V1637-1	16"	37"	14"	20"	41"	19"	200	100	300

V3290-1 (Oversize)

Inner Dimensions: Width:32"
Length:90"
Height:24"
Outer Dimensions: Width:36"
Length:94"
Height:31"
Weights (Lbs): Base:1063
Cover:581
Total:1644

V3086-1 (Standard)

Inner Dimensions: Width:30"
Length:86"
Height:23"
Outer Dimensions: Width:34"
Length:90"
Height:29"
Weights (Lbs): Base:875
Cover:413
Total:1288

V2464-1

Inner Dimensions: Width:24"
Length:64"
Height:18"
Outer Dimensions: Width:28"
Length:68"
Height:25½"
Weights (Lbs): Base:489
Cover:247
Total:736

V1848-1

Inner Dimensions: Width:18"
Length:48"
Height:16"
Outer Dimensions: Width:22"
Length:52"
Height:22½"
Weights (Lbs): Base:300
Cover:200
Total:500

V1637-1

Inner Dimensions: Width:16"
Length:37"
Height:14"
Outer Dimensions: Width:20"
Length:41"
Height:19"
Weights (Lbs): Base:200
Cover:100
Total:300

* all dimensions listed have a tolerance of ± ¼”
