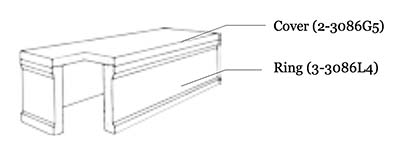

Ring Liner
- Bottomless concrete ring
- Flat cover
- 4 bricks for casket risers
| Order # | Inner Dimensions | Outer Dimensions | Weights (Lbs) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Width | Length | Height | Width | Length | Height | Base | Cover | Total | ||
| L3086-4 (Standard) | 30" | 86" | 26" | 34" | 90" | 29" | 600 | 575 | 1175 | |
| L2472-4 | 24" | 72" | 20" | 28" | 75" | 22" | 358 | 155 | 513 | |
| L2456-4 | 24" | 56" | 20" | 28" | 59" | 22" | 275 | 121 | 396 | |
| L1849-4 | 18" | 49" | 17" | 22" | 53" | 19" | 236 | 82 | 318 | |
| L1637-4 | 16" | 37" | 14" | 19" | 40" | 16" | 158 | 92 | 250 | |
| L1431-4 | 14" | 31" | 13" | 18" | 35" | 16" | 121 | 100 | 221 | |
| L1226-4 | 12" | 26" | 11" | 16" | 30" | 13" | 80 | 54 | 134 | |
L3086-4 (Standard)
- Inner Dimensions
- Width: 30"Length: 86"Height: 26"
- Outer Dimensions
- Width: 34"Length: 90"Height: 29"
- Weights (Lbs)
- Base: 600Cover: 575Total: 1175
L2472-4
- Inner Dimensions
- Width: 24"Length: 72"Height: 20"
- Outer Dimensions
- Width: 28"Length: 75"Height: 22"
- Weights (Lbs)
- Base: 358Cover: 155Total: 513
L2456-4
- Inner Dimensions
- Width: 24"Length: 56"Height: 20"
- Outer Dimensions
- Width: 28"Length: 59"Height: 22"
- Weights (Lbs)
- Base: 275Cover: 121Total: 396
L1849-4
- Inner Dimensions
- Width: 18"Length: 49"Height: 17"
- Outer Dimensions
- Width: 22"Length: 53"Height: 19"
- Weights (Lbs)
- Base: 236Cover: 82Total: 318
L1637-4
- Inner Dimensions
- Width: 16"Length: 37"Height: 14"
- Outer Dimensions
- Width: 19"Length: 40"Height: 16"
- Weights (Lbs)
- Base: 158Cover: 92Total: 250
L1431-4
- Inner Dimensions
- Width: 14"Length: 31"Height: 13"
- Outer Dimensions
- Width: 18"Length: 35"Height: 16"
- Weights (Lbs)
- Base: 121Cover: 100Total: 221
L1226-4
- Inner Dimensions
- Width: 12"Length: 26"Height: 11"
- Outer Dimensions
- Width: 16"Length: 30"Height: 13"
- Weights (Lbs)
- Base: 80Cover: 54Total: 134
* all dimensions listed have a tolerance of ± ¼”
